Projector Headlight Lenses | HID Projector Headlamps

Projector headlight lenses focus and shape light from an HID or LED bulb, helping create a more controlled beam than many open-reflector setups. Compare projector lens size, bulb compatibility, cutoff design, mounting space, and installation requirements before choosing a replacement or conversion kit.

How to choose projector lenses for a car

Start by checking your vehicle’s headlamp housing, bulb type, available depth, and mounting points. A projector lens must fit inside the headlight and align with the reflector or retrofit bracket; a lens that is too large may not leave room for the shroud, wiring, or rear heat clearance. Match the lens to the light source, such as an H4 LED conversion kit or a Bi-Xenon HID setup. Also confirm whether the design supports a low-beam cutoff, high-beam function, or both. If you are searching for a projector lens car upgrade, compare the complete installation requirements rather than the lens diameter alone. Use a projector lens calculator only as a planning aid, since the final beam depends on housing geometry, bulb position, and alignment.

Projector lenses vs HID projector headlamps: what is the difference?

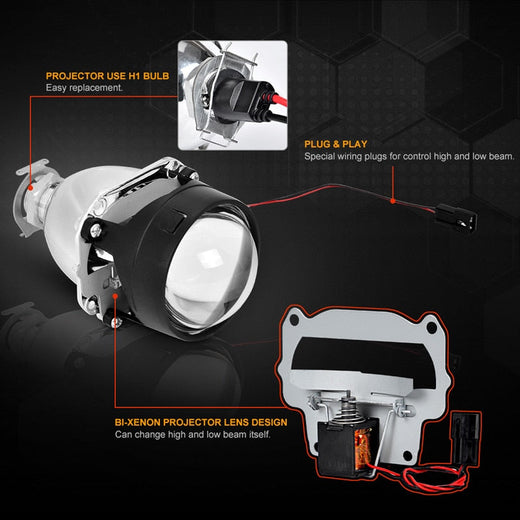

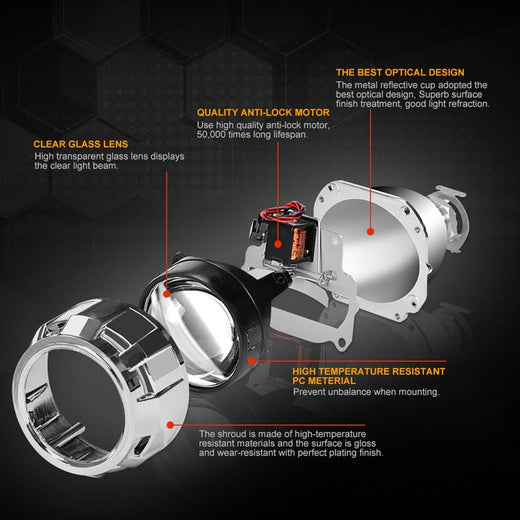

A projector lens is one optical component inside a headlamp assembly. It works with a reflector, shield, bulb or LED source, and housing to direct light toward the road. An HID projector headlamp generally refers to a fuller system designed around a high-intensity-discharge bulb, ballast, reflector, cutoff shield, and lens. Bi-Xenon HID projector lenses can provide low- and high-beam operation when paired with the correct solenoid and wiring, while an H4 LED mini projector kit is designed around an LED replacement source. Check whether a listing includes only the lens, a complete projector module, or a conversion kit. The difference affects installation time, required components, and the eventual projector lens price.

What to look for in a projector lens replacement

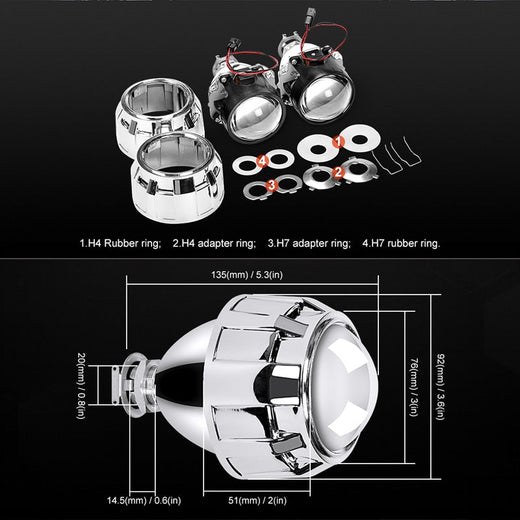

For a projector lens replacement, prioritize exact fit and optical compatibility over appearance. Measure the original lens or projector module, note its mounting method, and compare the replacement’s rear clearance with the headlamp shell. Inspect the lens for chips, haze, scratches, or damaged coatings, and check that the cutoff shield and projector body are included if your old parts are worn. Confirm the bulb base, connector style, and whether a ballast, relay harness, or LED driver is required. A replacement that fits physically but places the light source at the wrong focal point may produce an uneven beam. When comparing projector lens replacement price, include seals, brackets, wiring, shipping, and any professional opening and resealing of the headlamp.

How to install and use car projector lenses

Installation usually involves removing the headlamp, opening the housing, securing the projector module, connecting the light source, and resealing the assembly. Follow the product instructions for the H4 LED mini projector lens or Bi-Xenon HID module, and disconnect the vehicle battery before working on wiring. Keep the lens and reflector free from fingerprints, dust, and sealant residue. After installation, park on level ground and aim the lamps according to the vehicle manufacturer’s procedure. Check the cutoff on a wall and verify that both sides sit at the same height before driving at night. Do not assume a projector lens protector will correct a poor seal or misalignment; protection film or a cover can help guard the exterior, but it cannot replace proper installation.

Common projector lens buying and installation mistakes

A frequent mistake is choosing by advertised brightness alone without checking the beam pattern, bulb position, and vehicle fit. Another is assuming every H4 socket accepts a mini projector without trimming, brackets, or additional wiring. Mixing an HID projector with an unsuitable LED source, or using an HID bulb without the required ballast, can prevent the system from operating correctly. Buyers also overlook the headlamp seal, which can allow moisture inside after a retrofit. Avoid touching optical surfaces with bare fingers and do not skip final beam aiming. Be cautious with DIY projection lens work if you lack tools for opening and resealing the housing. The lowest projector lens price may not be the lowest total installation cost once adapters, replacement seals, and labor are included.

Who should buy projector lenses and HID projector headlamps?

Projector lenses suit drivers replacing damaged or cloudy internal optical parts, upgrading a compatible reflector-style headlamp, or building a custom HID or LED retrofit. An H4 LED Headlight Conversion Kit with a mini projector lens may suit a buyer seeking a compact conversion built around an H4 connection, while Bi-Xenon HID Projector Lenses are intended for buyers prepared to match bulbs, ballasts, wiring, and mounting hardware. They are less suitable for shoppers who need a simple plug-in bulb with no housing work. Before ordering, confirm the vehicle application, available space, light-source compatibility, and local road-use requirements. The portable Bluetooth speaker listed alongside these automotive products is not a projector lens component and should not be selected for a headlamp upgrade.

Frequently asked questions
