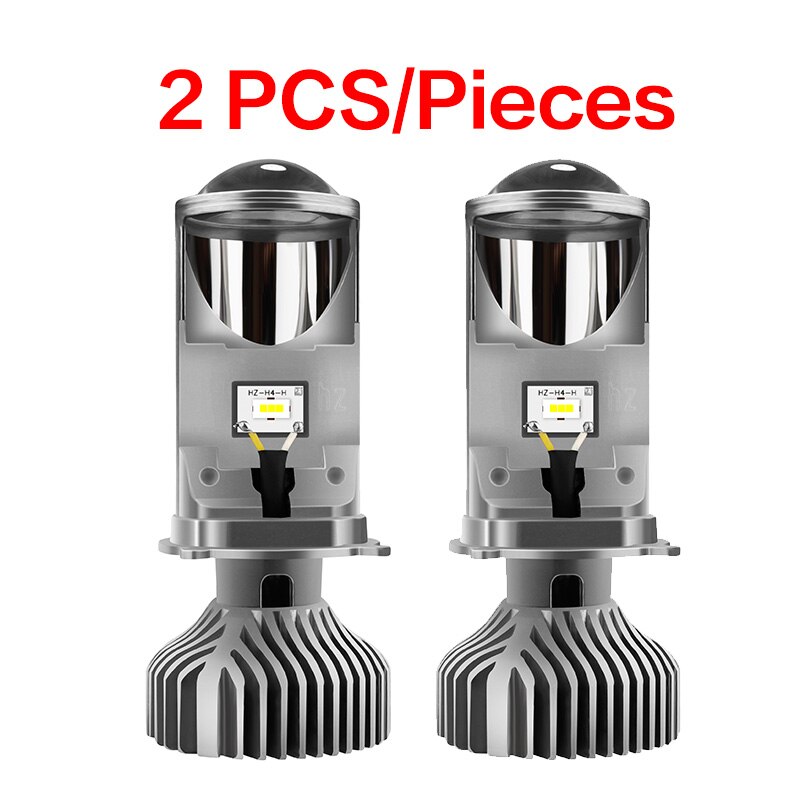

H4 LED Headlight Conversion Kit — 20000LM Mini Projector Lens
20000LM sharp-beam LED headlights — see twice as far
The AILEO H4 mini projector lens kit replaces dim factory bulbs with 20000 lumens of precision-engineered light. Crisp cutoff, no glare, plug-and-play canbus for 12V or 24V vehicles.
Three pillars of next‑level illumination
Every part of this kit works together — from the projector lens to the heat management to the plug‑and‑play module.

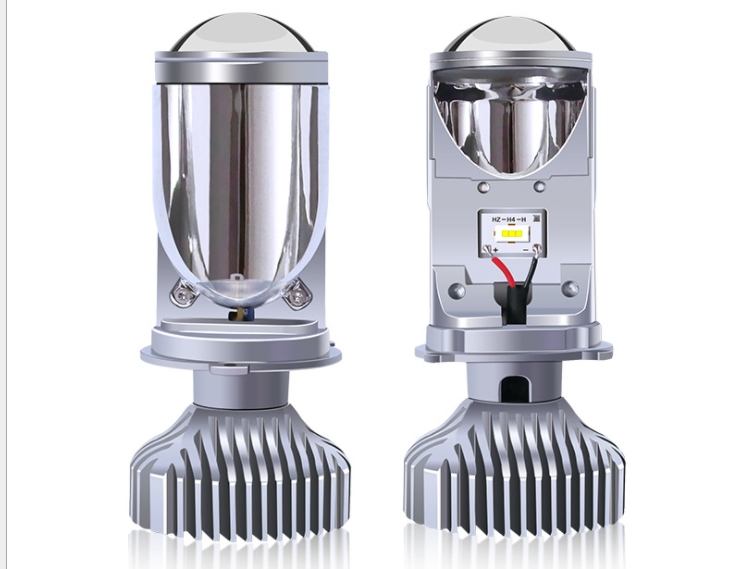

Mini projector lens technology
A compact internal mirror reflector mimics a full-size projector, shaping a beam that’s wide, even, and razor-sharp at the cutoff. You see the road, not the tops of trees.
Canbus error‑free integration
Built-in canbus decoder eliminates dashboard warnings and flickering. Compatible with 12V and 24V systems, left or right-hand drive. No extra resistors, no splicing.
Dual‑beam simplicity
Keep your factory hi/lo control — the bulb physically shifts focus when you switch. Low beam throws broad coverage, high beam reaches deep down the road. One bulb does it all.
Drivers who made the switch
Real feedback from real buyers — safety, clarity, and a genuine upgrade.
Night driving used to be stressful. Now I can see the side of the road clearly. Massive difference.
Installed on a 2009 Forester in 20 minutes. No flicker, no error codes. The cutoff is so sharp it looks like a projector retrofit.
Brightness is incredible. Only 4 stars because I had to adjust the beam aim slightly — but after that, perfect.
Went from candlelight to daylight. The pair really throws light far without blinding anyone. Highly recommended.
The mini projector lens is the real deal. You can see the crisp line on the wall. No glare at all, just clean beam.
Works on my diesel Sprinter 24V right out of the box. Only complaint: the heatsink base is a bit wide for my housing, but still fits.
My buddy with a $200 setup was impressed. He thought I did a full conversion. Just plug and play.
Two years with these and no flicker, no burnout. The canbus decoder is solid. Best $50-ish I’ve spent on my car.
Great product. I paired them with a clear lens housing and the result is near OEM LED quality. Would buy again.
Finally a bulb that actually fits my H4 housing without adapters. Beam pattern is spot on. Night drives are peaceful now.
Worth every penny. I can see deer eyes 300 feet away. No more heart-stopping surprises on rural roads.
Very bright, but note: they work best in projector housings. In a reflector, the cutoff is less sharp. Still a huge upgrade.
Install in three steps
You’ll need a clean towel, a small flathead screwdriver, and 15 minutes.
Remove the old bulb
Open the hood, locate the back of the headlight housing, and remove the dust cap (if equipped). Disconnect the electrical connector, then unlock the metal retaining clip and gently pull out the halogen bulb. Do not touch the glass of the new LED bulb with bare fingers — use the towel or wear gloves.
Insert the LED bulb
Slide the AILEO bulb into the housing, matching the H4 tab orientation (typically with the projector lens facing forward and the heatsink fins facing outward). Secure it with the factory retaining clip, then connect the bulb’s plug to the canbus module’s input side. Connect the canbus module’s output to the factory harness.
Test and tuck
Turn on the headlights to confirm hi/lo beam switching works and that the beam pattern looks clean on a wall 25 feet away. If the cutoff is blurry, rotate the bulb slightly within the housing until you see a sharp Z-shape. Tuck the canbus module and wiring inside the housing, replace the dust cap, and you’re done.
Measurable output, measurable confidence
Technical specs that translate directly to how far and how clearly you’ll see.
Why this beats basic halogen or cheap LED
When you put them side by side, the difference is stark.
| AILEO Mini ProjectorBEST | Standard Halogen | |
|---|---|---|
| Brightness | 20000 LM | ~1500 LM (dim) |
| Beam cutoff | Sharp Z-cutoff | Scattered |
| Canbus compatible | Yes, built-in | Not applicable |
| Lifespan | 30,000+ hrs | ~500 hrs |
| Install time | 15-30 min | 5 min |
| Color temperature | 6500K daylight | 3200K yellow |

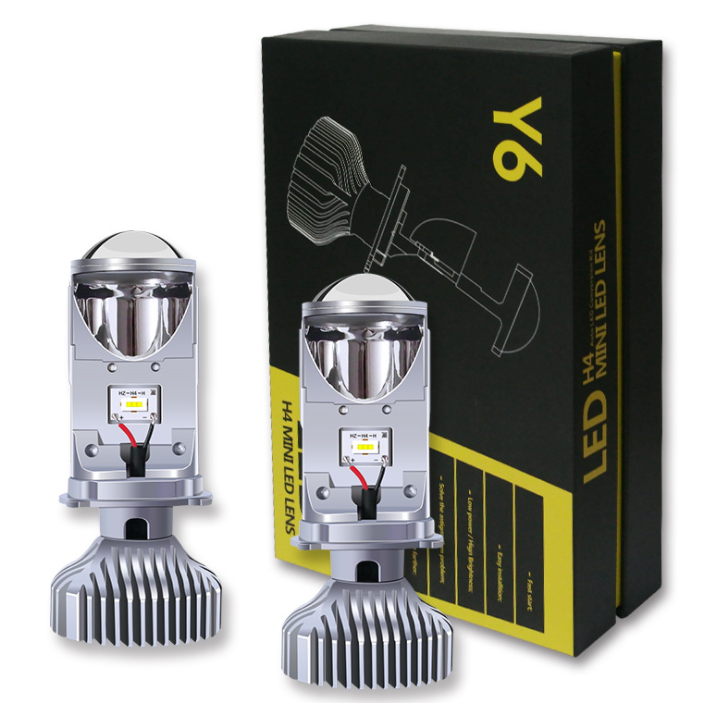

Everything for a complete upgrade
Open the box and you have all you need.
Every driver knows that moment of doubt
The stretch of road just beyond the beam. The curve that hides a deer. The pothole that swallows a tire. Standard halogens leave you squinting — and that’s not safe. This is the story of a bulb built to push the night back.
The halogen headache
Yellow, weak, and unfocused. Factory bulbs barely light the shoulder, let alone the deer 200 feet ahead. Replacement bulbs cost less than a dinner out, but they burn out fast and never get bright enough. You deserve headlights that match the speed of your life.
The projector difference
AILEO mini projector lenses focus every lumen into a tight, wide beam with a sharp cutoff. No scatter into oncoming traffic — just clean, usable light exactly where you need it. The canbus decoder talks to your vehicle’s computer so there’s no flicker, no error, and no hyper-flash.
From dusk to dawn
Install in 30 minutes. Turn the key. The road ahead transforms — signs become legible a quarter-mile out, the shoulder reveals every detail, and your eyes relax because the beam feels like daylight. Overtake with confidence, navigate winding roads, and arrive at every destination less tired. No compromises, just clear vision.

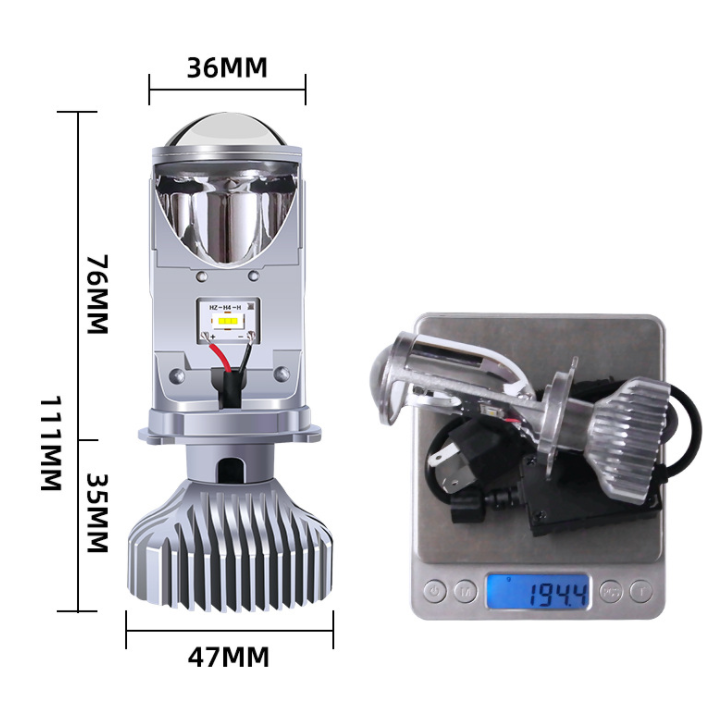

Compact yet powerful
Fits inside most factory headlight housings without modification.
About this item
Swap your dim halogens for 20000 lumens of precision projector light. The AILEO H4 kit brings crisp cutoff, canbus error-free performance, and a daylight-like beam that makes night driving feel safe a
20000LM ultra-bright LED headlights with mini projector lens for crisp beam patterns and superior night visibility
- inadequate headlight brightness
- dim factory bulbs
- poor beam cutoff pattern
- compatibility with multiple vehicle types
