SATA to SAS 90 Degree Elbow Adapter for SFF-8482 Ports

A right angle that clears the case wall

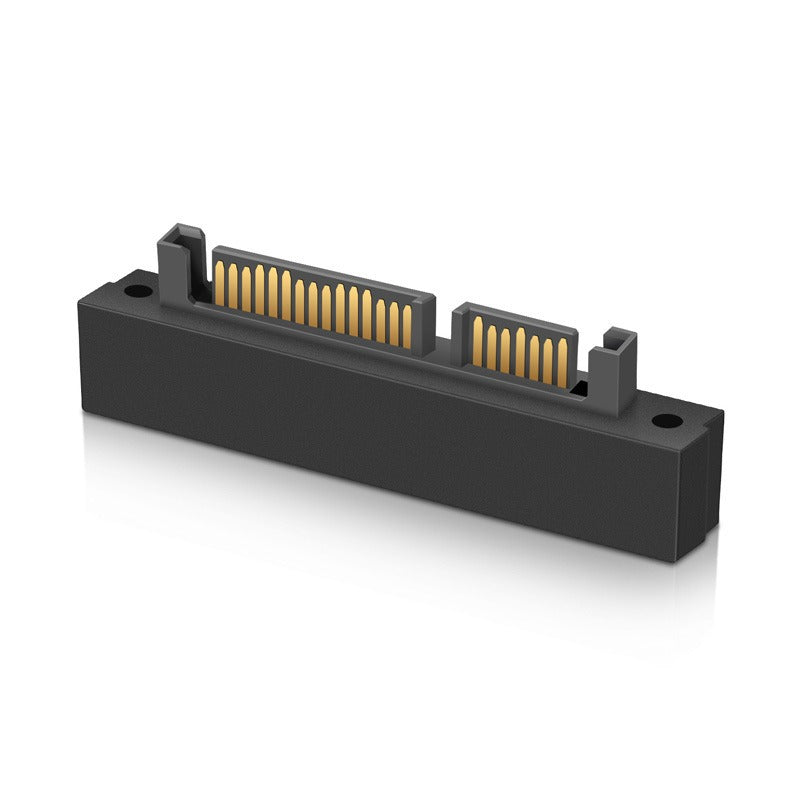

• Right angle that fits tight cases

  The 90 degree elbow lets the SATA connection sit flush where a straight plug would stick out past the case wall. You get the drive connected without bending a cable into a corner.

• Screw-mounted, latched secure

  Mounting screw holes sit on both ends, and latch clips grip the connection. The adapter stays put during case handling, so the drive does not work loose on the port.

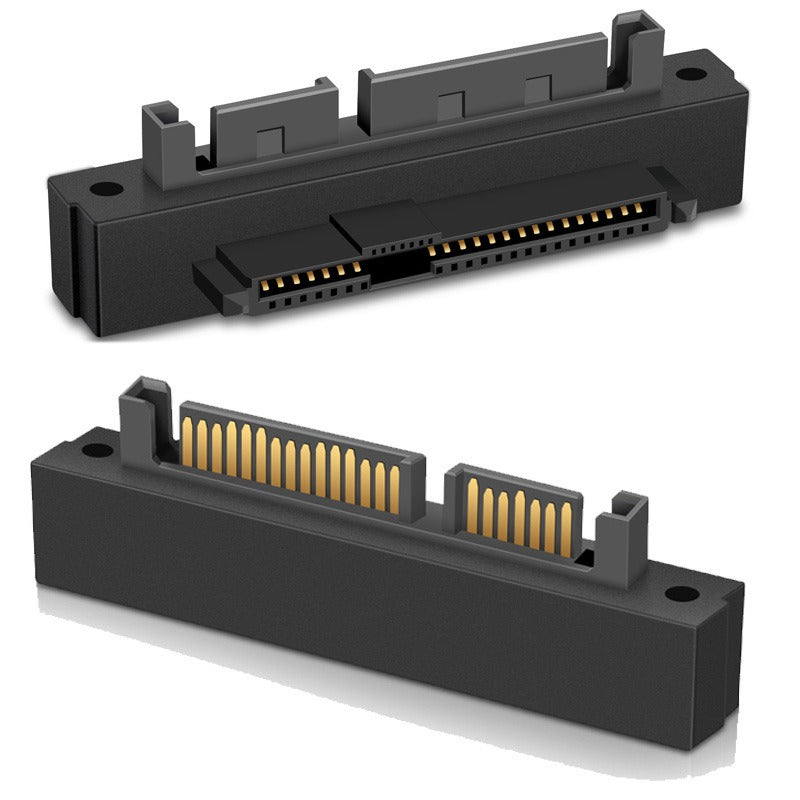

• Gold-plated contacts

  The contacts are gold-plated and set into a clean black molded housing. Gold resists oxidation better than bare metal, which keeps the signal path consistent across repeated seating.

Seat the adapter in four steps

1. 1
   Confirm the SFF-8482 port

   Check that the board has a SFF-8482 SAS port before you touch the adapter.

2. 2
   Seat the elbow

   Line up the 29-pin SAS male connector with the port and press with even pressure until it sits flush.

3. 3
   Connect the drive

   Plug the SATA drive into the 7+15 pin female socket on the other end of the elbow.

4. 4
   Screw both ends

   Fasten the mounting screws at both ends, then confirm the drive is detected in BIOS or the operating system.

A straight plug stops at the case wall

The drive that won't reach

You have the drive, the board and a case that is nearly full. A straight SATA plug hits the wall before it reaches the port, so the cable gets bent, pulled or left hanging. Each option either fails to seat or puts strain on the connector you are trying to protect.

A fit that holds

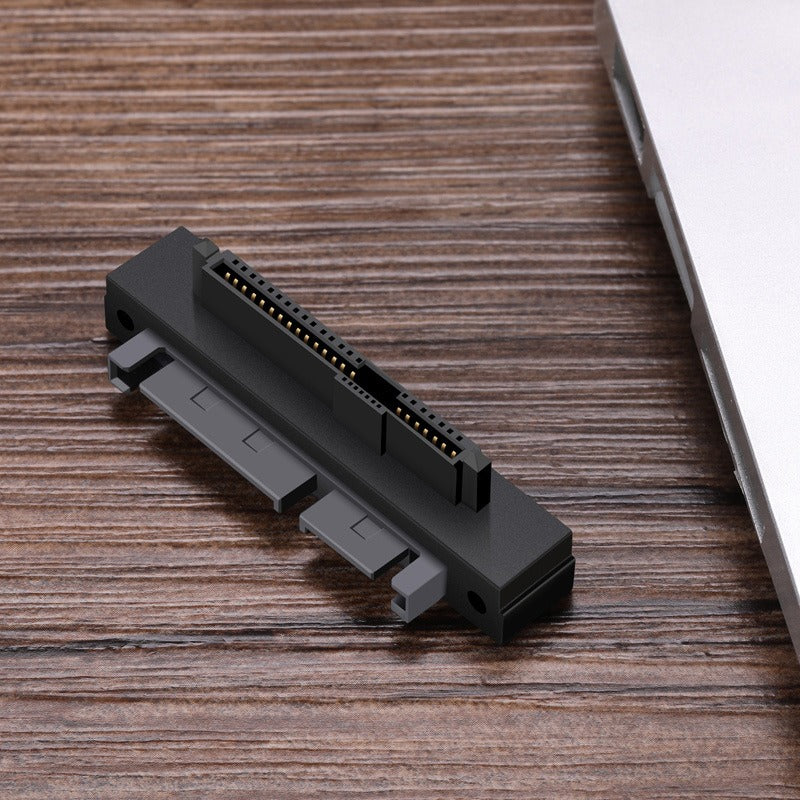

The 90 degree elbow seats on the SFF-8482 port and turns the drive connection toward the open side of the case. Latch clips hold the connector in place, and the mounting screw holes at both ends lock the adapter down so it does not wobble when the chassis is moved.

From first fit to a stable connection

1. First use
   Seats on the SAS port

   The elbow should slide onto the SFF-8482 port with gentle, even pressure. If it resists, stop and check orientation rather than forcing it.

2. After install
   Drive connects at the angle

   The SATA drive connects to the elbow's female socket and sits inside your case clearance. Secure the screws and confirm detection in BIOS or the OS.

3. Ongoing
   Stable through regular use

   With the latch clips and screws in place, the connection holds through normal case handling. Recheck the screws if the system is moved or serviced.
