About this itemAll characteristics
TypeComputer hardware - SATA cable adapters
Connector typeSATA 22-pin, male to female
Pin layout7+15 split
JointRotary joint body
ContactsGold-plated pins
RetentionSide latch tabs
From the seller

Your drive is in the bay, the cable won't seat, and there is no room to route it. This compact 22-pin male-to-female rotary adapter fixes the mismatch so the drive connects and the bay closes. Gold-plated contacts and side latch tabs keep the mate steady through install.

Read the full description

Description

Your drive is in the bay, the cable won't seat, and there is no room to route it. This compact 22-pin male-to-female rotary adapter fixes the mismatch so the drive connects and the bay closes. Gold-plated contacts and side latch tabs keep the mate steady through install.

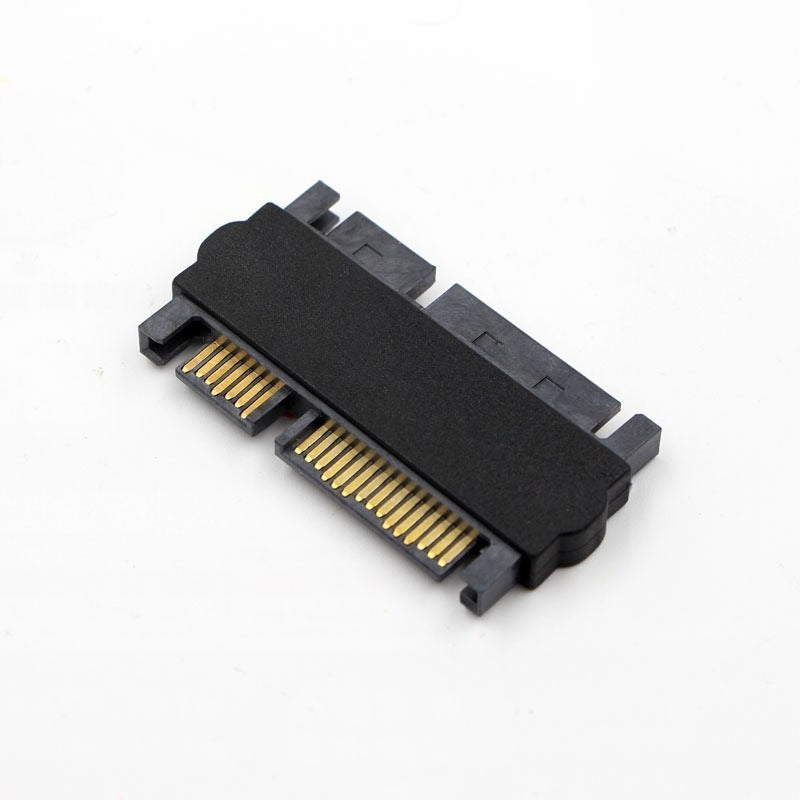

Compact SATA 22-pin male-to-female adapter with rotary joint for connecting SATA drives in tight spaces

Solves
  • connecting a SATA drive to a cable that does not match the connector
  • limited clearance behind drive bays or in tight cases

Connect any SATA drive, even where there's no room

Cable doesn't match the drive, or the case leaves no space to route it. This compact 22-pin male-to-female rotary adapter makes the connection work so the drive is seated and the bay closes.

One small part that clears the cramped spot

  • Clears the case wall

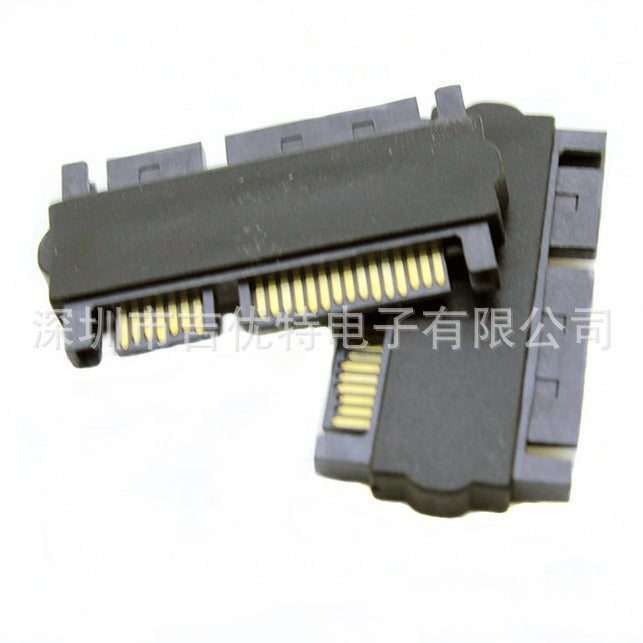

    The rotary joint lets the cable leave the connector at an angle, so it runs away from a tight wall instead of kinking against it. The bay closes without strain on the connector.

  • Matches the 22-pin layout

    Male on one end, female on the other, with the standard 7+15 split on both. It bridges a mismatched cable to a SATA drive without changing the drive or the cable.

  • Gold contacts, latch hold

    Gold-plated pins resist tarnish on the contact surface, and the side latch tabs keep the mate from creeping loose during install. The housing is plain molded plastic, so handle it like the tool it is.

Seat it straight, latch it, then route

  1. 1
    Check the orientation

    Line up the 7+15 pin layout on the adapter with the drive port. Confirm the male and female ends face the right way before you touch anything.

  2. 2
    Press straight in

    Push the connector in along its axis until the side latch tabs engage. If it resists, back out and recheck the alignment. Do not push harder.

  3. 3
    Turn the joint

    Rotate the joint gently through its smooth range until the cable leaves at a relaxed angle clear of the case wall.

  4. 4
    Route and secure

    Run the cable along the path you chose and keep the bend soft. Avoid holding the joint past its range.

  5. 5
    Confirm detection

    Power up and check that the drive shows in the BIOS or your OS disk manager before you close the bay.

The cable won't fit, and the job stalls

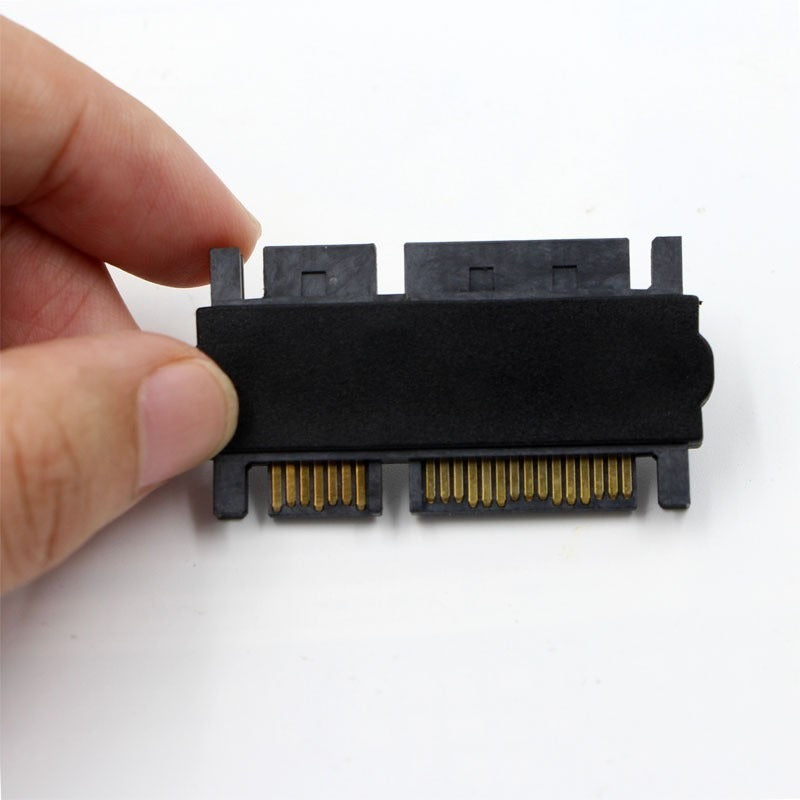

Black SATA adapter held in hand beside a bay with pins and latch tabs visible

The cable that won't fit

The drive is in the bay and the cable on hand has the wrong pinout or is too stiff to angle. Forcing it bends contacts. Hunting for another cable costs a day you didn't plan to lose.

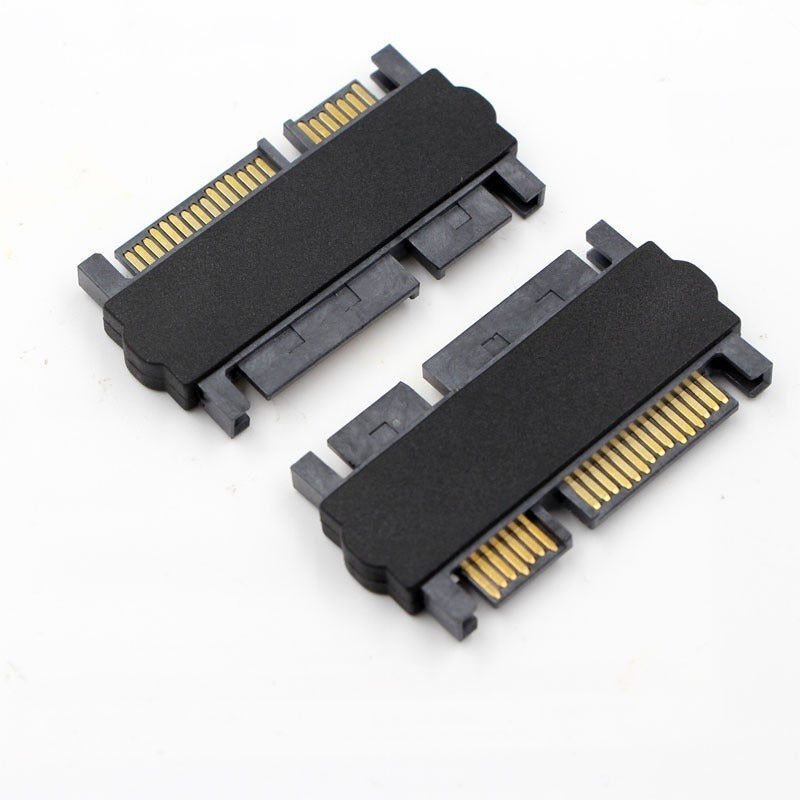

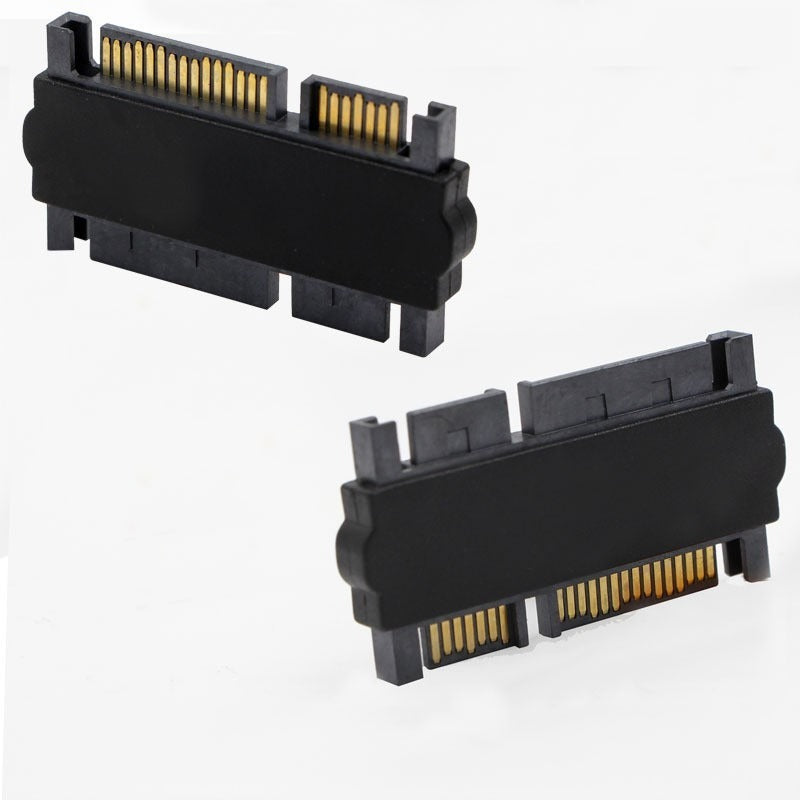

Two SATA adapters at angles showing the rotary joint and gold pin rows

A small part that bridges it

A 22-pin male-to-female adapter sits between the drive and the cable. The rotary joint turns the cable path away from the wall, and the gold-plated contacts give the mate a clean, repeatable seat.

The bay closes, the job moves on

The drive seats, the cable clears the case wall, and the panel goes back on. The fix took a few minutes and a part that costs less than a wasted afternoon.

Why the rotary joint beats forcing it

This adapterStraight generic adapterForcing the cable
Angles the cable away from a wall ——
Side latch tabs hold the mate ——
Gold-plated contacts ——
No replacement cable needed —
rechargeable hearing aidssterilizers ultraviolet phonehair dryers ionicdehumidifiers portable homesmart watches withgame controllers pc,lap stands riserswooden headphone standsretro handheld gamewireless controllers gamepads

Characteristics

Main
TypeComputer hardware - SATA cable adapters
Details
Connector typeSATA 22-pin, male to female
Pin layout7+15 split
JointRotary joint body
ContactsGold-plated pins
RetentionSide latch tabs
HousingMatte black molded plastic
Form factorCompact, single part

Reviews

Questions and answers

Does it match the standard SATA 22-pin layout on my drive and cable?
w
Wanelo · seller

Yes, if both your drive and cable use the standard SATA 22-pin connector. The adapter is male on one end and female on the other, with the 7+15 split on both. Confirm your drive and cable first, since non-standard pinouts will not work.

Is the 7+15 pin split the same on both ends?
w
Wanelo · seller

Yes. Both ends carry the same 7+15 layout, so the adapter passes signal and power straight through from the cable side to the drive side.

Will the plastic housing hold up under regular plugging?
w
Wanelo · seller

The housing is matte black molded plastic, not metal. The gold-plated pins and side latch tabs carry the connection, so handle it as a service part. Seat it straight, avoid forcing it, and it holds up through normal install and removal.

Does the rotary joint add signal loss or drops?
w
Wanelo · seller

The joint is a mechanical turn, and the signal path runs through the mated contacts. Keep the joint inside its smooth range and seat the latch tabs. If a drive drops out after the adapter is in place, recheck the seat first.

Can I use it for a server drive swap in a rack?
w
Wanelo · seller

Yes. Mate the adapter to the new drive before sliding it in, confirm the latch tabs engage, then slide the drive home. This keeps the cable path fixed and avoids strain on the connector during the swap.

Is it worth buying one instead of waiting for the right cable?
w
Wanelo · seller

A single adapter costs less than a day of waiting for a replacement cable to arrive. Keep one in the toolkit and a mismatch becomes a short fix instead of a stalled build.
