Sewer Inspection Camera — 360° Steering Endoscope with IP67

Three Critical Advantages Over Generic Borescopes

• Imported OV Photosensitive Chip & Multi‑Coated Lens

  A 7‑element lens stack with anti‑flare coatings captures sharp, true‑color images down to 10mm focal distance. The OV sensor amplifies ambient light, so even a sewer main at midnight shows clear detail—no grainy shadows.

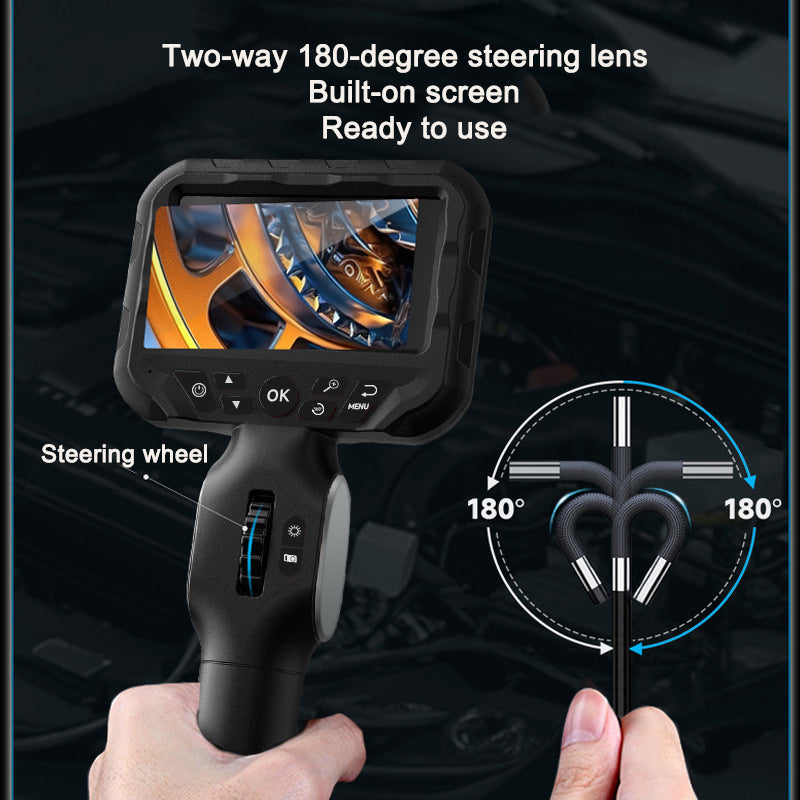

• Two‑Way 180° Articulating Head with Precision Wheel Control

  The steering wheel gives you smooth, analog‑feel navigation through 360° of rotation. Bend the tip to look backward, around elbows, or into side branches without ever removing the probe. The built‑in locking mechanism holds the angle steady for detailed inspection.

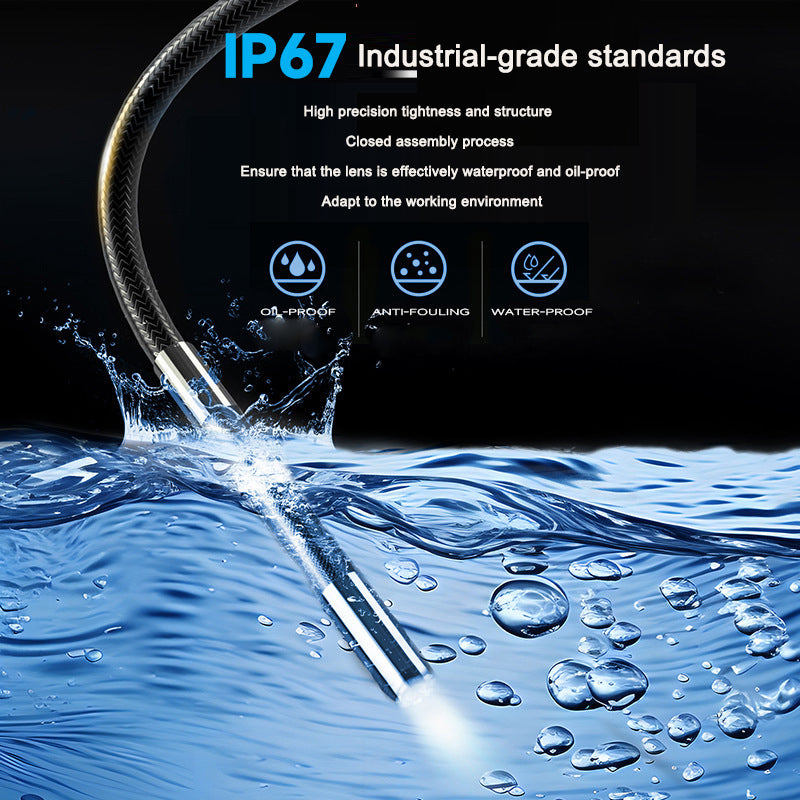

• Industrial‑Grade Sealed Assembly — Oil‑Proof, Water‑Proof, Jobsite‑Proof

  Every joint is gasketed, and the braided outer jacket sheds petroleum, hydraulic fluid, and mud. Hose it down, drop it in a sump, or use it during a rainstorm—the internals stay dry and the image stays sharp.

Specifications That Translate to Faster Diagnostics

• 6mmUltra‑slim camera diameter fits standard pipes and spark plug holes
• 1.1–1.6mChoose the right reach for your typical runs; flexible yet rigid when pushed
• IP67Tested immersion up to 1 meter for 30 minutes; handles oil, mud, and chemicals
• 4.3"TFT LCD with 480×272 resolution, daylight‑viewable and smudge‑resistant

Unbox, Inspect, Diagnose

1. 1
   Charge and Power On

   Connect the USB‑C cable (included) to a 5V adapter until the battery indicator turns green. Press and hold the power button—the 4.3‑inch screen lights up, showing the live camera feed immediately.

2. 2
   Attach the Probe Cable

   Align the 10‑pin connector on the braided cable with the socket on the main unit. Push firmly until it clicks. The screen will confirm ‘Camera Connected’. Never force it if misaligned.

3. 3
   Set Camera Orientation

   The steering wheel has a neutral detent. Turn it left or right to bend the tip; the scale ring on the unit shows angle position. For straight‑ahead insertion, center the wheel and lock it by pressing the stem.

4. 4
   Navigate the Menu

   Use the three‑button navigation cluster to adjust LED brightness, toggle photo/video mode, set date/time for file stamps, and access the gallery. A micro‑SD card slot is behind the rubber flap—insert one to capture your inspection.

5. 5
   Insert and Scan

   Lubricate the probe head with cable pulling gel if the pipe is dry. Feed the cable slowly; the screen updates in real time. Use the wheel to steer around bends. When you reach the target, tap the shutter button to save evidence.

Everything You Get

• Main Display Unit×1

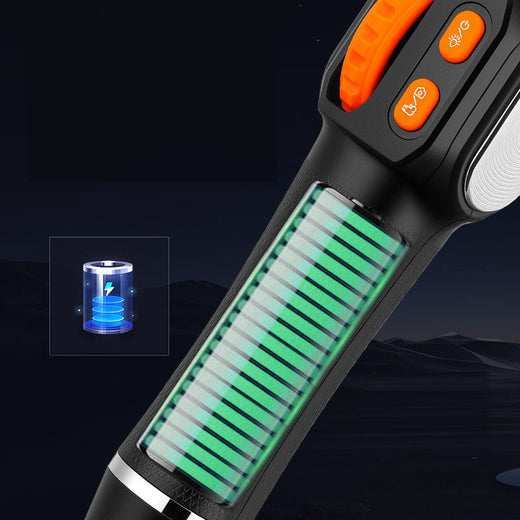

  4.3‑inch LCD, integrated controls, rechargeable battery

• 6mm Camera Probe Head×1

  Pre‑installed on cable; IP67 sealed with tempered glass lens

• Braided Flexible Cable×1

  Choose 1.1m or 1.6m; high‑flex directional cable with 10‑pin connector

• Steering Control Handle×1

  Ergonomic grip with lockable wheel and menu buttons

The Hidden World of Critical Infrastructure

The Expensive Unknown

Every plumber, HVAC tech, and maintenance crew knows the dread: a clog deep in a sewer line, a hairline crack in an engine bore, or a failed component behind a wall. Traditional inspection meant either destructive access or hiring a specialist with a $10,000 rig—and still waiting for answers. Downtime piled up, and the guesswork risked missing the real culprit.

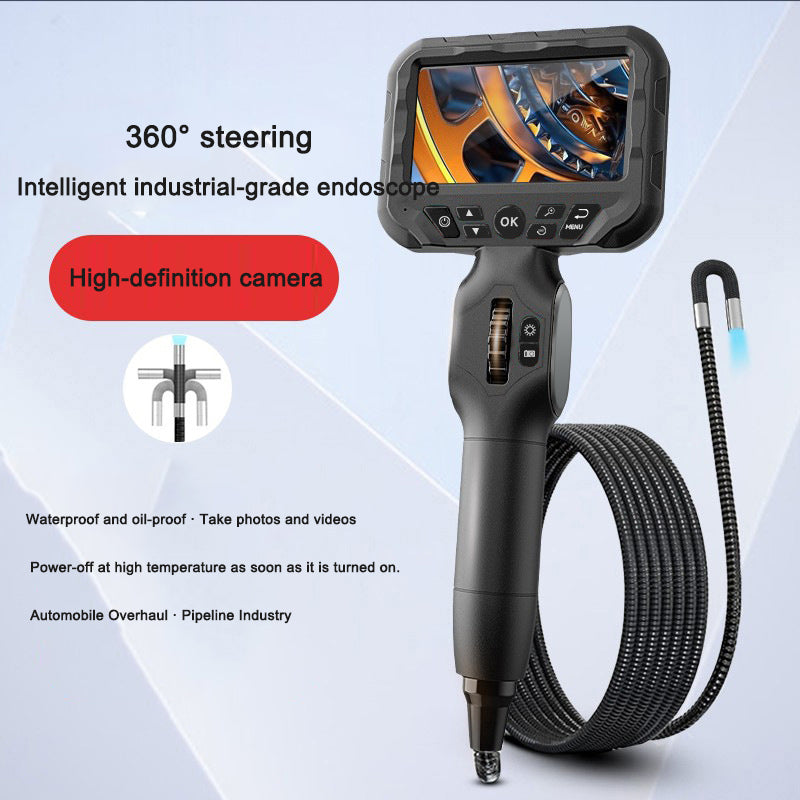

Steering Into the Dark

The 6mm probe, with its 360° articulating head and two‑way 180° steering, becomes your eyes in the tightest spaces. The responsive wheel lets you navigate bends and junctions with a finger’s touch, while the 4.3‑inch LCD displays a crystal‑clear, full‑color feed. No more blind spots—just a vivid view of the actual condition.

Confidence That Survives the Jobsite

Built to IP67 industrial‑grade standards, the sealed assembly laughs at water, oil, and grit. The braided cable resists abrasion, and the imported OV photosensitive chip ensures bright, accurate color even in total darkness. What used to take hours and a crew now takes minutes—and the evidence is recorded right on the screen. From routine checks to non‑destructive testing, you’re always in control.

Keep It Running for Years

• After wet or oily jobs

  Rinse the cable and head with clean water; wipe dry with a microfiber cloth. Do not use compressed air on the lens.

• Lens protection

  Apply a single drop of lens cleaning fluid to a cloth—never directly on the glass. Buff gently to avoid scratching the coating.

• Connector pins

  Keep the 10‑pin socket covered when not in use. If it gets dirty, use a dry electrical contact cleaner spray sparingly.

• Battery storage

  If storing longer than a month, charge to 50‑60% and power off. Deep discharge can permanently reduce capacity.

Compact Enough for Your Kit Bag

• 18.5 × 9.8 × 4.2 cm (W×H×D)Main Unit
• 6mm diameter × 23mm lengthProbe Head
• Minimum 30mmCable Bend Radius
• 620g (1.1m) / 710g (1.6m)Weight (with cable)

About the size of a large flashlight—fits standard tool belt pouches.
