Anvil Shaft Replacement for Worx & Parkside Drivers
A worn anvil is the reason your driver slips, not the motor or battery. This two-part set gives you a machined steel spindle anvil shaft and a bearing sleeve, built to restore grip on compatible Worx and Parkside tools. Swap the parts at the bench and the driver goes back to work.
Read the full descriptionDescription
A worn anvil is the reason your driver slips, not the motor or battery. This two-part set gives you a machined steel spindle anvil shaft and a bearing sleeve, built to restore grip on compatible Worx and Parkside tools. Swap the parts at the bench and the driver goes back to work.
Direct OEM-style replacement spindle anvil shaft and bearing sleeve for Worx and Parkside tools
- worn or broken anvil shaft
- tool no longer delivering torque
- avoiding replacing the whole tool
Restore your driver's torque without buying a new tool
A worn anvil shaft turns a reliable driver into a slipping one. Fit a precision-machined replacement shaft and sleeve and the tool drives like new.
Machined to Seat, Not to Guess
- Locks In with a Wing-Head Fit

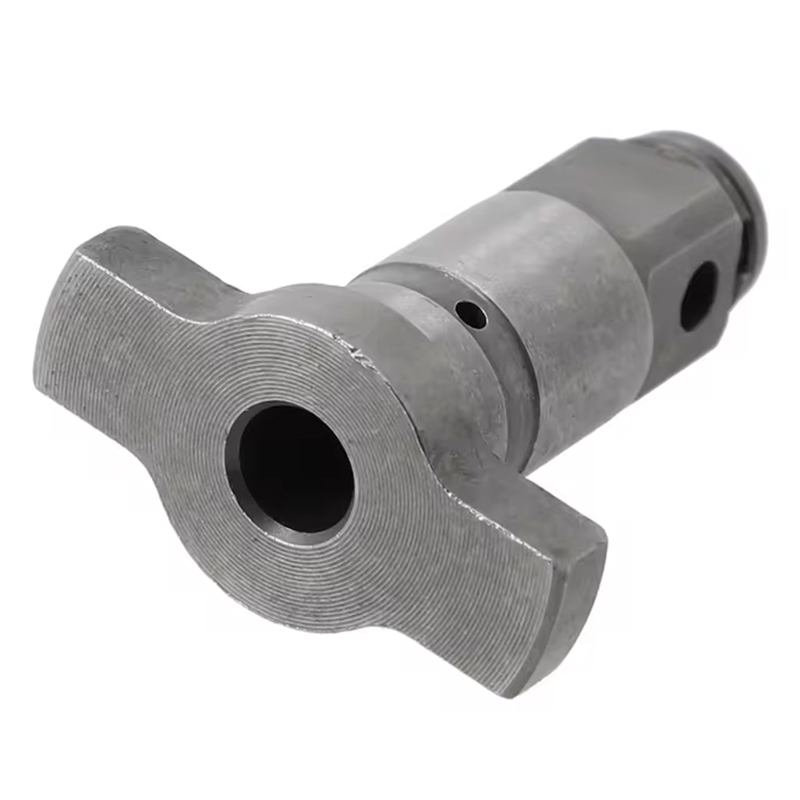

The three-lobed wing head and hex drive section engage the tool's drive system. That contact is why the anvil has to match the original geometry. A rounded or mismatched head is what makes a driver lose its grip, and this shaft is machined to the same profile.
- Stays Put Under Load
The retaining groove with its O-ring and the cross drill hole hold the shaft in position while the tool works under torque. Seat the O-ring flat in its groove before reassembly and the shaft stays where it should.
- Two Parts, One Fix
The bearing sleeve is sized at 16 x 22 x 10mm and ships with the shaft. Replacing both together keeps the bearing fit consistent, so you do not swap one worn part and leave the other behind.
How to Swap the Anvil Shaft
- 1Remove the old shaft
Take the worn anvil out of the driver body. Note how the old shaft and sleeve sit before you pull them, so the new set goes in the same way.
- 2Check the O-ring and groove
Look at the retaining groove and O-ring on the old part. Note which way the O-ring sits, because the new shaft has to seat the same way.
- 3Seat the bearing sleeve
Place the cylindrical bearing sleeve into position first. It should sit square and sit without forcing.
- 4Fit the new shaft and test
Slide the new spindle anvil shaft in with the wing head and hex drive facing the tool's drive. Confirm it sits flush with no wobble, then run a test screw before trusting the tool on a job.

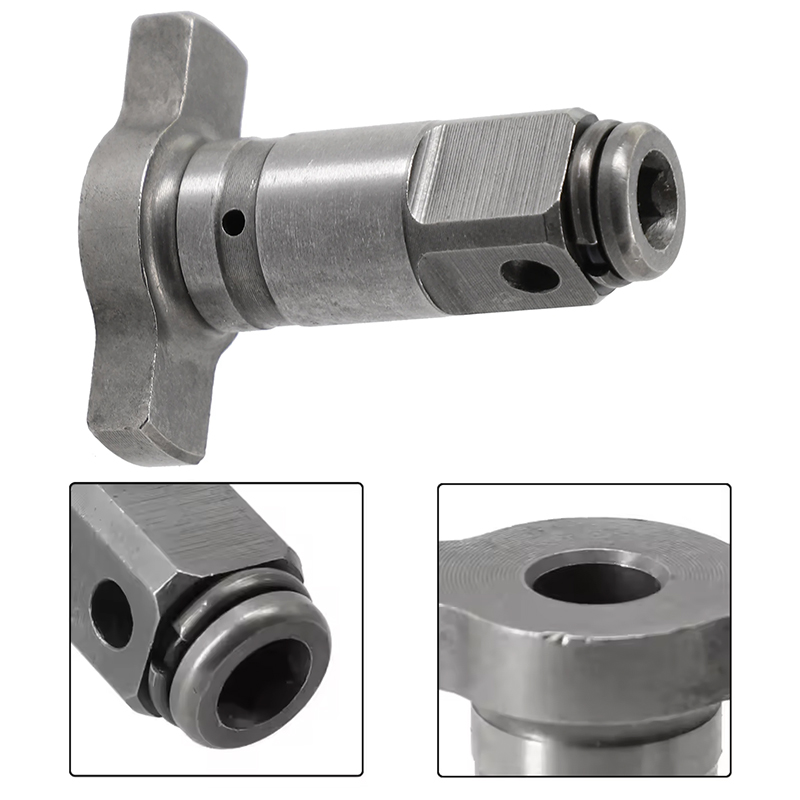

Two Precision Parts in One Set
- Spindle anvil shaft×1
Machined steel with wing head, hex drive, cross hole and O-ring groove
- Bearing sleeve×1
Cylindrical, 16 x 22 x 10mm
From Slipping Screws to Firm Drive
The Driver That Slipped
The last turn of a screw starts to skid. The bit cams out, the tool stalls, and screw heads get chewed up. The motor sounds fine and the battery is charged, so the problem looks bigger than it is. Usually it is the anvil at the front of the drive, worn past the point where it can grip.
The Part That Fits
A matched spindle anvil shaft and bearing sleeve puts the drive back where it belongs. The steel shaft carries the three-lobed wing head and hex drive, and the sleeve sits alongside it. Swap the two parts, keep the body, battery and charger, and the driver goes back to work on the bench.
Save the Tool, Not Just the Money
| Anvil Shaft Set | New Cordless Driver | |
|---|---|---|
| Keeps your motor | — | |
| Keeps your battery | — | |
| Replaces only the worn wear parts | — | |
| Works with your existing charger | — |
Characteristics
Reviews
Questions and answers
The set is listed for Worx and Parkside electric screwdrivers and wrenches in models WU268, WU278, WU279, B3 and C3. Match your model number to that list before ordering. The anvil has to follow the tool's drive geometry, so a part for a different model will not seat correctly.
Yes. The set contains the spindle anvil shaft and the bearing sleeve as two separate parts, so you receive everything needed for the anvil swap in one order.
The shaft is machined steel with a grey metallic finish and a clean machined surface. The three-lobed wing head, hex drive section, cross drill hole and O-ring retaining groove are all cut into that steel body.
Almost always. A replacement anvil set costs a fraction of a new cordless driver, and you keep the motor, battery and charger you already own. If the body and battery are in good shape, the repair gives you a tool that drives to torque again for the cost of two small wear parts.
No special tooling is listed for this set. The job is a bench swap: remove the old shaft, check the O-ring and groove, seat the sleeve, then fit the new shaft and confirm it sits flush with no wobble before running a test screw.
